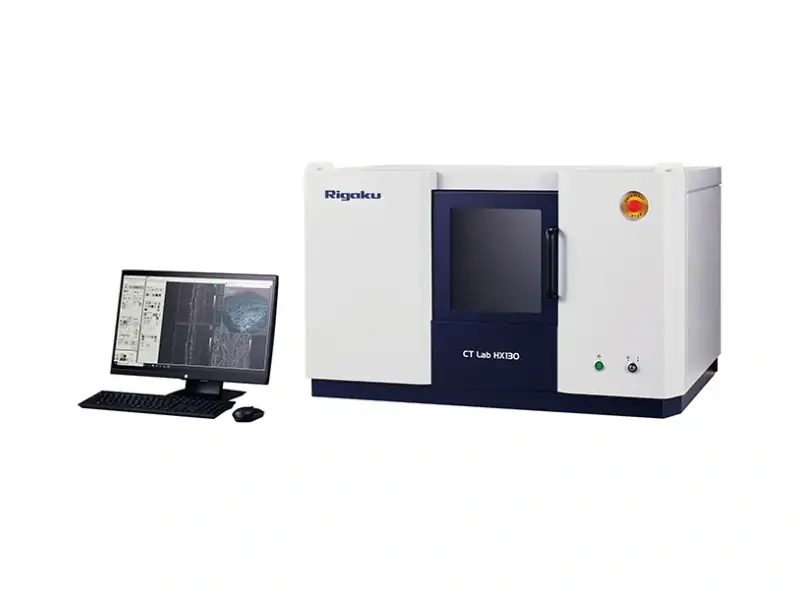

CT Lab HX
High-Speed CT
- High-speed laboratory X-ray CT system
- High-energy source for dense sample penetration
- Large sample capacity up to 300 mm diameter
- Fast scan times for high-throughput analysis
- 3D reconstruction and analysis software included
Product Overview
The Rigaku CT Lab HX is a high-energy laboratory X-ray computed tomography (CT) system designed for non-destructive 3D imaging of dense and large samples. The CT Lab HX uses a high-energy X-ray source (up to 225 kV) to penetrate materials such as metals, rocks, ceramics and composite structures that cannot be adequately imaged with lower-energy systems.
The CT Lab HX is used in geology, mining, materials science, aerospace, automotive and manufacturing for examining internal structures, defects, porosity, cracks and inclusions in 3D without physical sectioning. Its large sample stage accommodates objects up to several hundred millimetres in diameter, and its high-resolution detector provides detailed volumetric data for both qualitative inspection and quantitative analysis.
Supplier Page
Technical Specifications
| Technique | X-ray Computed Tomography (CT) |
| Source | High-energy X-ray tube (up to 225 kV) |
| Detector | Flat panel or line detector |
| Sample Size | Up to 300 mm diameter |
| Resolution | Down to a few µm |
| Scan Speed | High-speed acquisition |
| Reconstruction | 3D with analysis software |
| Manufacturer | Rigaku |
| Power | Single-phase or three-phase |
Downloads & Resources
Contact us to request brochures, application notes or technical data sheets for this product.
Interested in the CT Lab HX?
Our specialists will help you find the right solution for your application and budget.
