Dissolution Testing Systems
Electrolab Dissolution Testers for Pharmaceutical QC
- Automated dissolution testing for pharmaceutical dosage forms
- USP Apparatus 1 (basket) and 2 (paddle) configurations
- 6 and 8 vessel options
- Programmable speed, temperature and sampling
- Compliant with USP, EP and JP pharmacopoeias
Product Overview

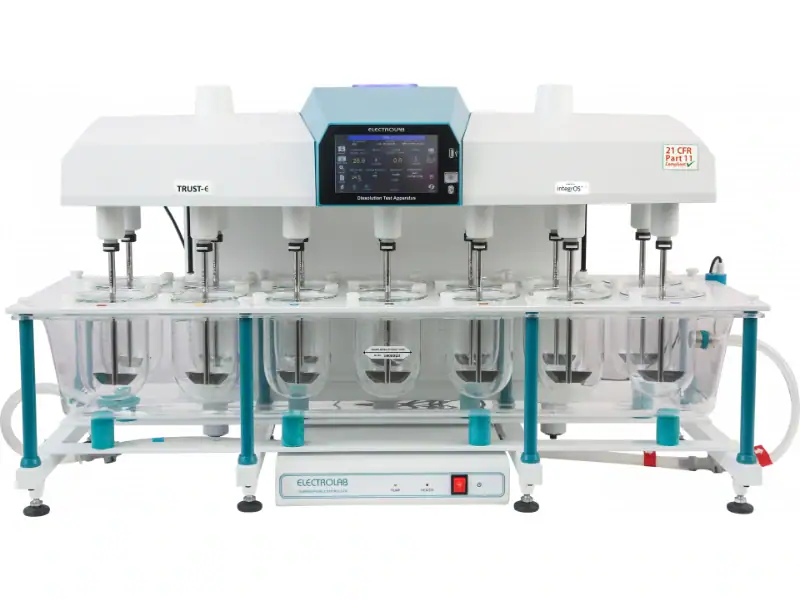

Electrolab dissolution testers determine the release rate of active pharmaceutical ingredients from solid dosage forms. USP Apparatus 1 (basket) and 2 (paddle) in 6 and 8 vessel configurations, with automated sampling systems for USP, BP, EP and IP compliance testing.
Supplier Page
Technical Specifications
| Type | USP Dissolution Apparatus |
| Configurations | Apparatus 1 (basket), Apparatus 2 (paddle) |
| Vessels | 6 or 8 |
| Volume | 500 mL – 1000 mL vessels |
| Speed | 25 – 250 RPM |
| Temperature | 37.0°C ± 0.5°C |
| Compliance | USP, EP, JP pharmacopoeias |
| Software | Dissolution data management |
| Manufacturer | Electrolab |
| Power | Single-phase 230 V / 50–60 Hz |
Downloads & Resources
Contact us to request brochures, application notes or technical data sheets for this product.
