SEAL Analytical

MiniLab AR

Robotic Sample Handling System

MiniLab AR — SEAL Analytical
  • Robotic automation of routine bench-top measurements
  • pH, conductivity, alkalinity, turbidity, colour, BOD
  • Walk-away operation with barcode sample tracking
  • Integrates with LIMS for automated data reporting
  • Reduces manual handling and transcription errors


Product Overview

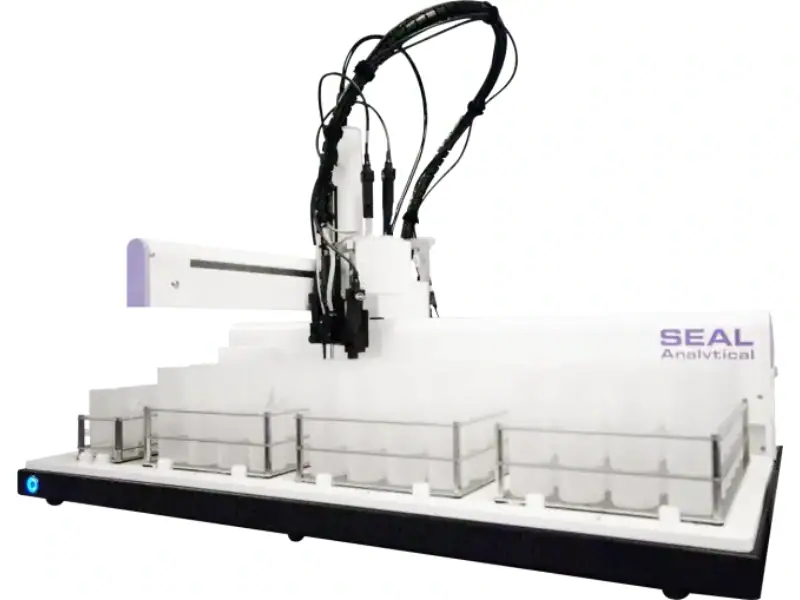

The SEAL Analytical MiniLab AR is a robotic sample handling system that automates routine bench-top measurements including pH, conductivity, alkalinity, turbidity, colour and biochemical oxygen demand (BOD). The MiniLab AR combines compact robotic sample handling with automated probe movement, ensuring speed, accuracy and reduced operator involvement in repetitive testing workflows.

The MiniLab AR is designed for environmental, water utility and industrial laboratories seeking to automate the labour-intensive sample preparation and measurement steps that are typically performed manually. By automating probe-based measurements, the system improves reproducibility, increases throughput and frees laboratory staff to focus on more complex analytical tasks. The system is configurable to handle single or multiple parameters simultaneously.

Manufacturer

SEAL Analytical

All SEAL Analytical products on Wirsam →

Category

Analytical

Continuous Flow / Discrete Analysers

Technical Specifications

System Robotic Sample Handling
Measurements pH, conductivity, alkalinity, turbidity, colour, BOD
Sample Positions Up to 60
Automation Fully robotic with barcode tracking
Electrodes Interchangeable sensor probes
Data LIMS-compatible output
Compliance Standard wet chemistry methods
Software SEAL MiniLab software
Power Single-phase 230 V / 50–60 Hz

Downloads & Resources

Contact us to request brochures, application notes or technical data sheets for this product.

Request Documentation
