NanoSIMS 50L
High Resolution SIMS
- Ultra-high lateral resolution below 50 nm
- Simultaneous measurement of up to 7 masses
- Isotopic and elemental mapping at the nanoscale
- Applications in biology, geology, cosmochemistry and materials
- Highest spatial resolution SIMS available
Product Overview

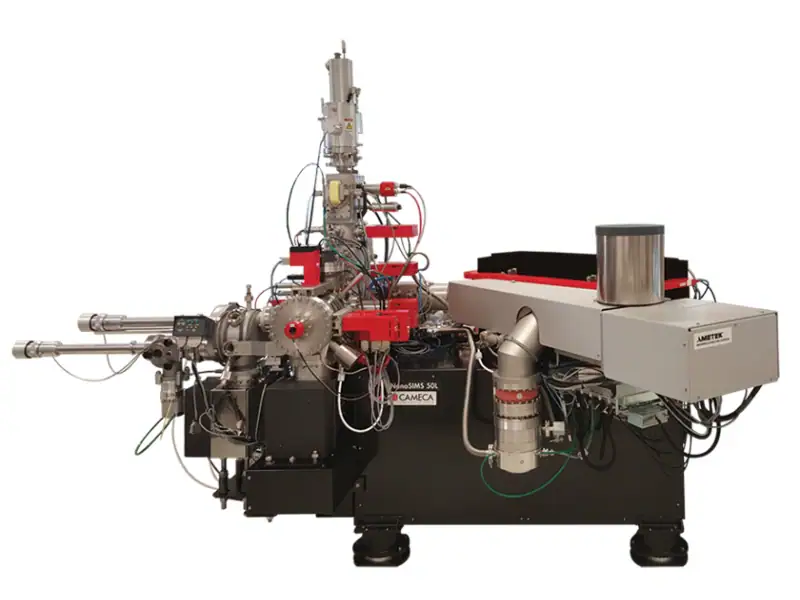

The CAMECA NanoSIMS 50L is an ultra-high-resolution secondary ion mass spectrometer capable of simultaneously measuring up to seven masses with a lateral resolution below 50 nanometres. The NanoSIMS 50L is the definitive instrument for high-spatial-resolution isotopic and elemental imaging, enabling researchers to visualise chemical and isotopic distributions within individual cells, grains and nanostructures.
Applications include cosmochemistry (presolar grain analysis), microbiology (single-cell metabolic studies with stable isotope tracers), geology (mineral zoning and diffusion studies), materials science and semiconductor research. The NanoSIMS 50L’s unique combination of extreme spatial resolution and high sensitivity multi-collection has made it an indispensable tool in laboratories worldwide studying processes at the sub-micrometre scale.
Supplier Page
Technical Specifications
| Technique | High-Resolution SIMS |
| Lateral Resolution | <50 nm |
| Mass Resolution | M/ΔM > 9000 |
| Simultaneous Masses | Up to 7 |
| Primary Ions | Cs⁺, O⁻ |
| Detectors | Electron multiplier array |
| Sample Types | Biological, geological, materials |
| Imaging | Isotope ratio mapping |
| Vacuum | Ultra-high vacuum |
| Software | CAMECA NanoSIMS software |
Downloads & Resources
Contact us to request brochures, application notes or technical data sheets for this product.
