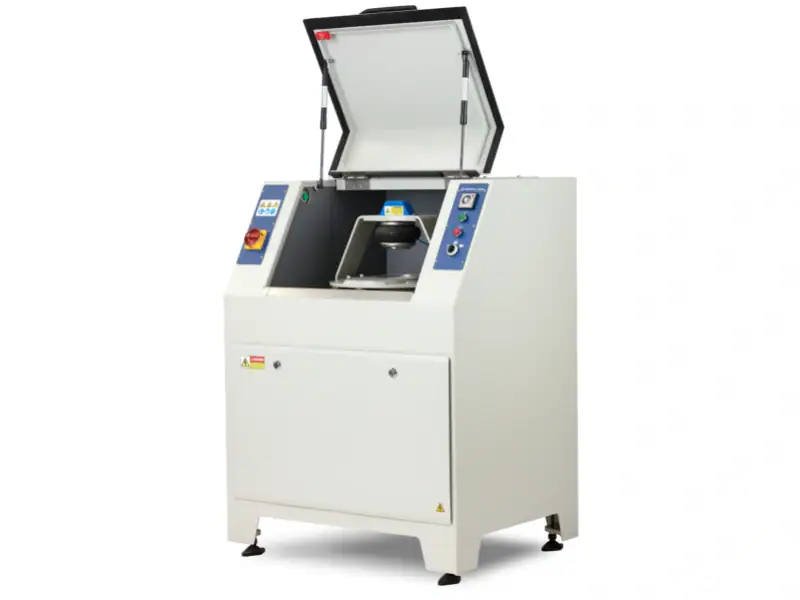

RM1000
Batch Pulverizer (1-1000g)
- Batch ring mill pulveriser for samples up to 1000 g
- Grinds geological samples to analytical fineness (<75 µm)
- Chrome steel, tungsten carbide and zirconia grinding sets
- Robust construction for continuous laboratory use
- Fast grinding — typically 2–3 minutes per sample
Product Overview
The Rocklabs RM1000 is a robust, high-capacity ring mill pulveriser designed for grinding geological and mineral samples to analytical fineness. The RM1000 processes samples up to 1,000 grams in a single charge, pulverising material to -75 µm (200 mesh) with very low cross-contamination between samples, which is critical for accurate assay results in mining exploration and production.
The RM1000 is used in mining laboratories, commercial assay offices, geological surveys and research institutions for routine sample preparation prior to fire assay, XRF, ICP and other analytical techniques. Its heavy-duty construction, chromium steel grinding vessels and integrated sand wash cleaning system ensure reliable performance in high-throughput production environments. The RM1000 can operate as a standalone unit or be integrated into Rocklabs’ automated sample preparation systems.
Supplier Page
Technical Specifications
| Type | Batch Ring Mill Pulveriser |
| Capacity | 1 – 1000 g per batch |
| Grinding Sets | Chrome steel, tungsten carbide, zirconia |
| Output Size | <75 µm (analytical fineness) |
| Grind Time | 2 – 3 minutes typical |
| Sample Types | Geological, mining, mineral |
| Contamination | Low — dedicated grinding sets |
| Manufacturer | Rocklabs (Scott Technology) |
| Power | Three-phase 380–415 V / 50 Hz |
