STM7

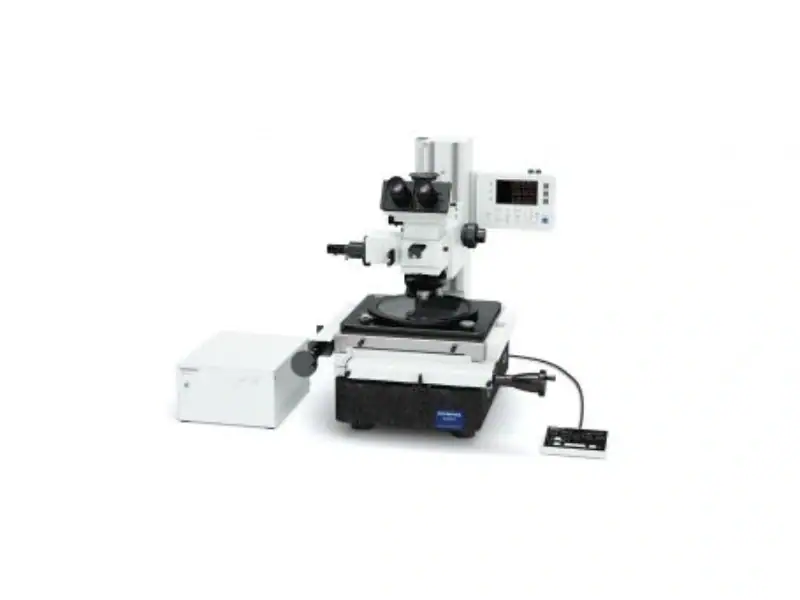

Evident (Olympus) STM7 Stereo Microscope
- High-accuracy non-contact dimensional measurement
- Motorised XY stage with sub-micron positioning
- Dual-illumination system for transparent and opaque samples
- Edge detection software for automated measurement
- Calibration traceable to national standards
Product Overview
The Evident STM7 entry-level stereo microscope provides reliable, cost-effective macro inspection for electronics, PCBs, samples and general quality control. Zoom ratio 0.67× to 4.5× with LED ring illumination and ergonomic trinocular head options.
Supplier Page
Technical Specifications
| Type | Measuring Microscope |
| Technique | Non-contact optical measurement |
| Stage | Motorised XY |
| Accuracy | Sub-micron positioning |
| Illumination | Transmitted and reflected |
| Objectives | 1× – 50× |
| Measurement | Length, angle, radius, position |
| Software | STM7 dedicated measurement software |
| Edge Detection | Automatic |
| Power | 100–240 V / 50–60 Hz |
Downloads & Resources
Contact us to request brochures, application notes or technical data sheets for this product.
Industries & Applications
Commonly used in the following sectors
